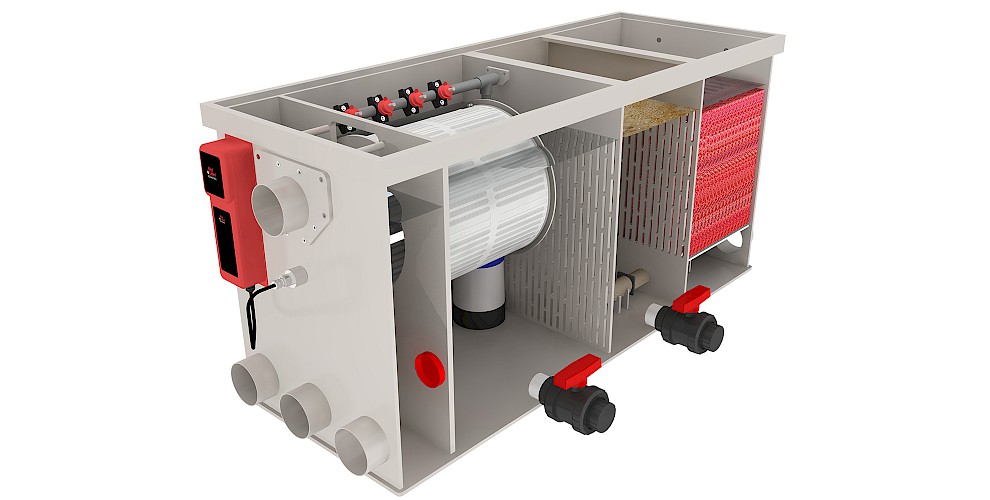

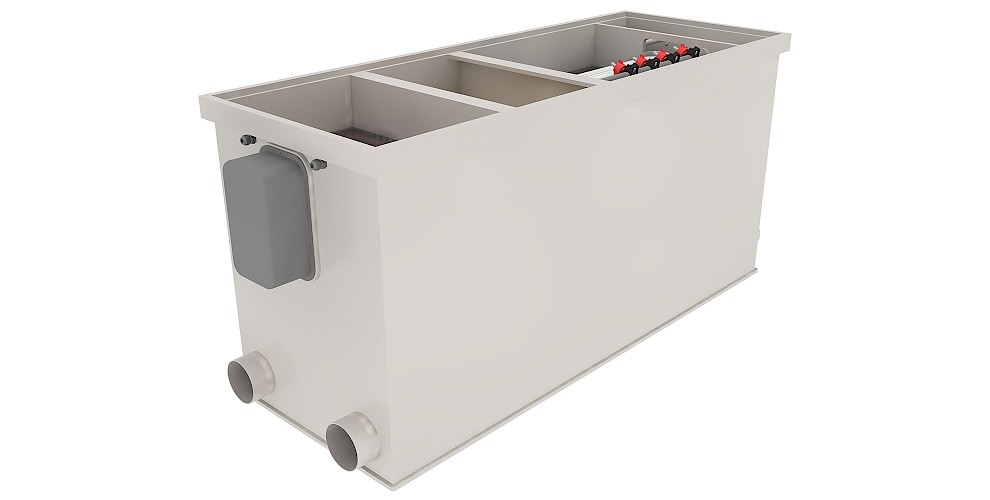

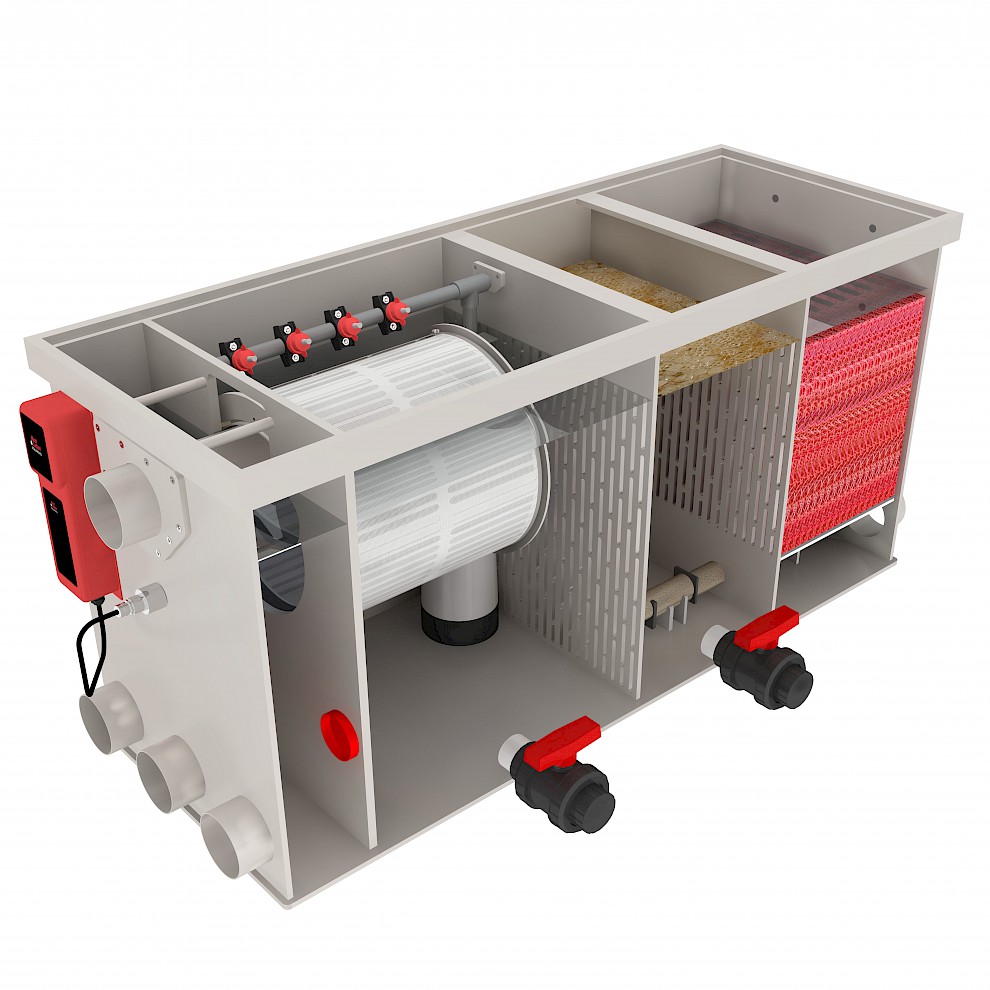

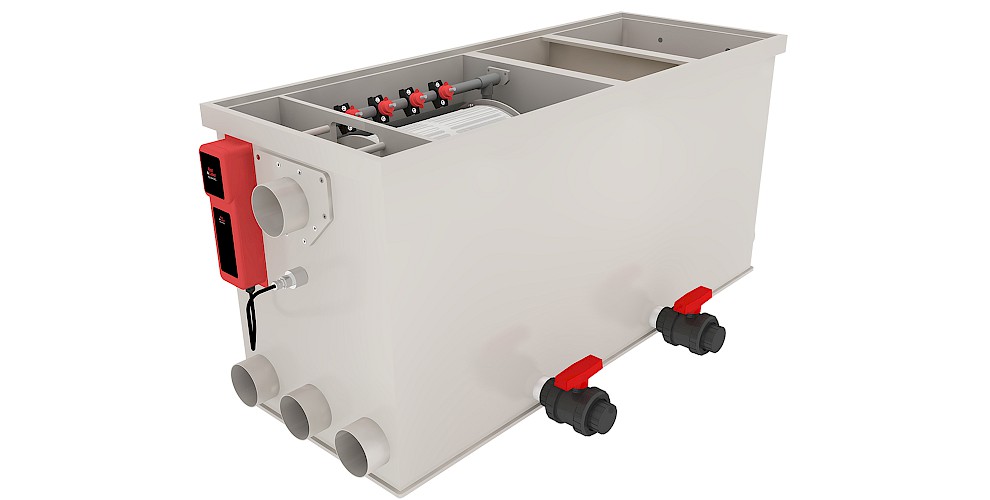

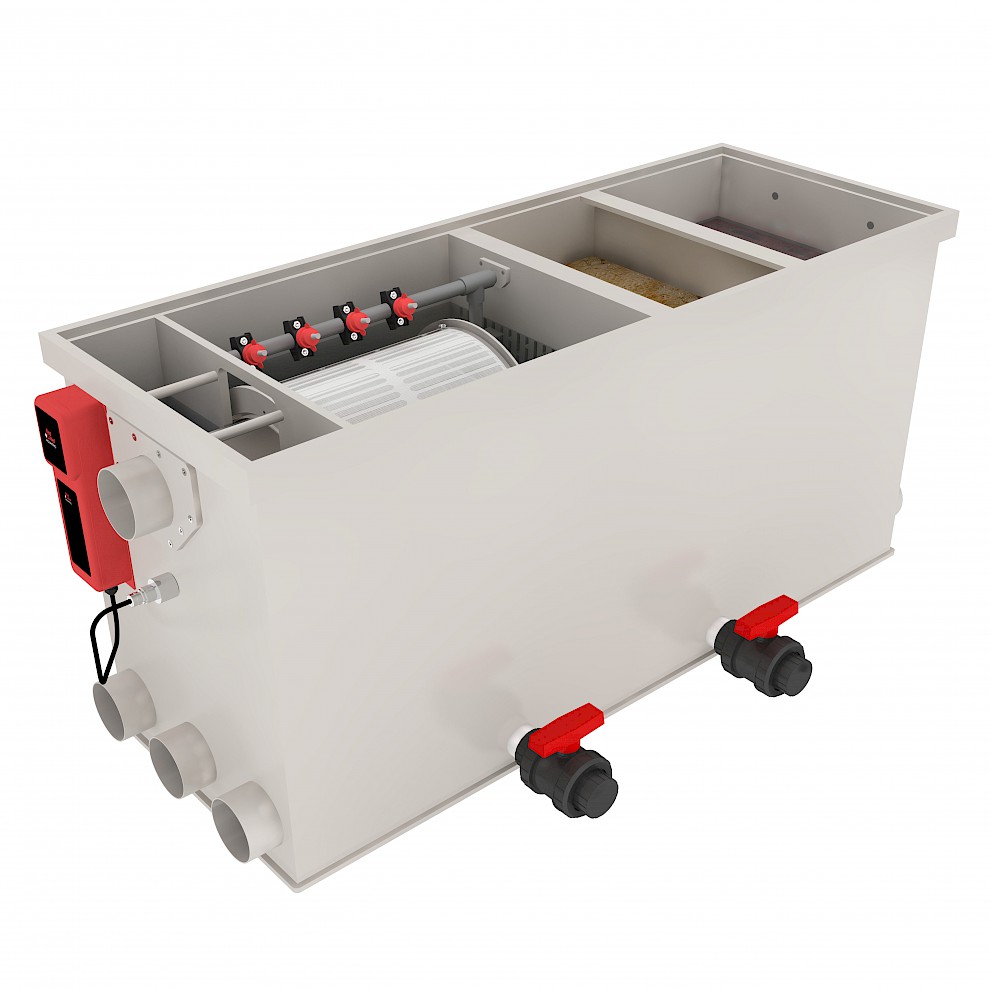

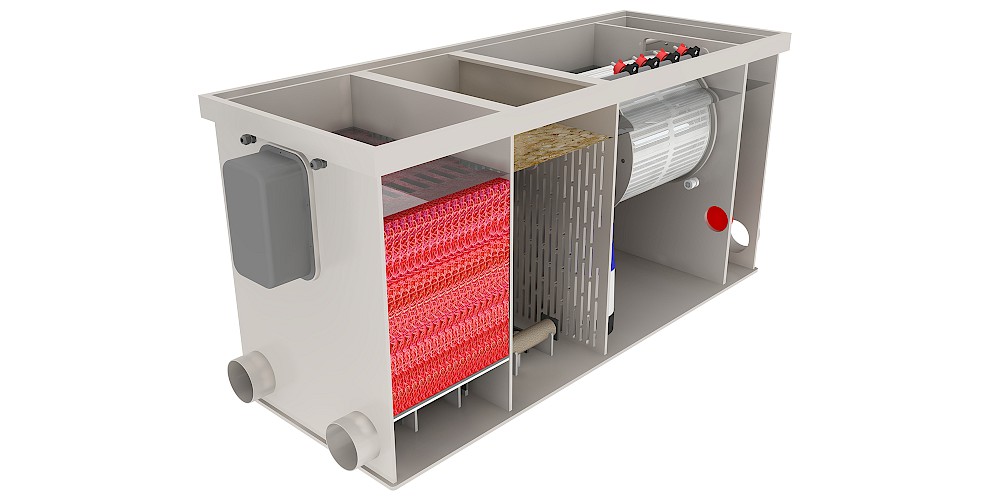

INLINE 20/25 LOW

Specificaties

• Productno
  F2010013
• Type
  AquaKing INLINE 20/25 LOW
• Model
  Gravity or pumpfed
• Size (LxWxH)
  1687 x 590 x 750 mm
• Max. flow
  25 m3/h
• Screens INOX
  120 micron
• Panel size
  Diameter 400 x 400 mm
• Inlet
  3 x 110 mm
• Outlet
  2 x 110 mm
• Waste drain
  2 x 110 mm
• Spraypump
  Built-in Q800103
• Gear Motor
  27 Nm
• Controlbox
  Controlbox BASIC | IP 65
• Material
  PP
• UVC
  Built-in 40 Watt INOX
